Collecting Tolls on Canals

Canal companies levied tolls on the weight and type of cargo carried and all new boats had to be indexed (calibrated) before they were allowed into service. Once a boat had been correctly indexed and it was in service, the procedure for obtaining the weight of cargo it was carrying was called gauging. There were slightly different methods of indexing boats around the canal network but one commonly used was as follows:

A new boat was floated into a special dock equipped with iron weights and cranes for the purpose of lifting these weights into the cargo hold of the boat. The first step was to establish the datum, which was the position of the freeboard when the boat was empty. To do this, a gauging rod was used to carefully measure the freeboard at four known points on the gunwales of the boat. These points were at one point each side near the bows and one point each near the stern and their locations were marked by small copper plates.

Freeboard, sometimes known as 'dry inches', is the draught or vertical distance between the gunwale and the water line.

Next, weights to a value of four tons were picked up by the cranes and evenly distributed along the length of the cargo hold and once more the freeboard was measured with the gauging rod at the four points. This procedure was then repeated in increments of four tons, normally up to a total of 28 tons for a narrow boat.

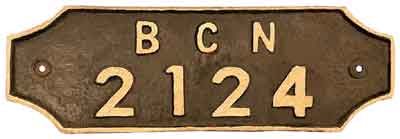

The weights were then removed from the hold and the average freeboard reading for each 4-ton increment was calculated and subdivided into one-ton and half-ton readings. A copper gauge plate, bearing a reference number and the year of gauging, was then affixed to the boat. These details were then added to the master gauging sheet for the boat, copies of which were circulated to toll collectors who all possessed gauging rods identical to the one used to index the boat.

When in service, a laden boat could not commence its journey until it had been gauged. The toll clerk would first measure the freeboard (dry inches) at the four known points. He would then add these measurements together and divide the total by four to obtain the average freeboard for the whole boat. He would then record the average freeboard, gauge reference number, type of cargo being carried and the distance it was to be carried. Reference was then made to the copy of the boat's gauging sheet from which the weight of cargo being carried could be read off. A permit was then issued to the person in charge of the boat who was then free to leave.

If the person in charge of the boat also happened to be its owner then he could pay the toll collector directly before leaving. If he was not the owner, then an invoice would be sent to the company who owned the boat.

Bye-laws concerning gauge plates and permits were strict. It was an offence to deface a gauge plate or to navigate without one. Permits were variously known as pass notes, bills of lading or tickets and it was an offence to navigate without one. It was an offence not to show a permit to a toll collector, lock keeper or other authorised person on demand and it was an offence to falsify a permit. Finally, it was an offence to commence unloading a boat without first handing the permit to the wharfinger, or his clerk, in charge of the wharf. Canal companies were empowered to fine anyone caught breaking bye-laws and, for example, in the 1870s a typical fine for each of these offences was £5.

The above method of indexing and gauging boats was in use until c.1963 and another method was as follows:

A new boat would have vertical grooves cut into the hull at one point each side near the bows, one point each side amidships and one point each side near the stern. A lath was then put into each groove and lightly nailed in place. With the boat in the dock, the first step was to establish the datum, which was the location of the freeboard when the boat was empty. This was done by marking the position of the water line on each of the six laths.

Next, weights to a value of four tons were picked up and evenly distributed along the length of the cargo hold. Typically, to make up four tons, twelve 600 lb weights and four 440 lb weights were placed in the hold:

  1 ton = 2,240 lbs
∴ 4 tons = 8,960 lbs
∴ (12 x 600 lbs) + (4 x 440 lbs) = 7,200 lbs + 1,760 lbs = 8,960 lbs or 4 tons

Marks were then made on the six laths at the water line to record the freeboard with 4 tons in the cargo hold.

This procedure was then repeated in increments of four tons, normally up to a total of 28 tons for a narrow boat.

The weights and the six laths were then removed, the latter being used to make permanent index strips. The markings on each lath were subdivided into one-ton and half-ton markings. Each lath was then taken and placed at the side of a copper index strip, which was 1¼ inches wide x about 2 feet 8 inches long. The markings on the lath were then transferred onto the copper strip and stamped in place, together with numbers representing each one-ton increment. On completion of this work, the six copper strips were fastened to the hull in the grooves already present. At the top of each strip a small copper gauge plate was attached to the hull bearing a reference number and the year when the boat was indexed.

When the boat was in service, the toll clerk would first note the position of the water line on each of the six strips and record the corresponding weight to the nearest half-ton. The average of the six readings would then be calculated to give an accurate reading of the weight of cargo being carried. The rest of the procedure was then similar to that described above.

Collecting Tolls on the Peak Forest Canal
It seems that the gauging system used by the Peak Forest Canal Company was similar to the second of the two methods described above. Each boat was identified by a plate attached to it bearing the words 'The Peak Forest Canal Company' and a number. This plate was accompanied by six index points, that is, on each side of the stem and stern and on the middle of each side.

In July 1829 the Peak Forest Canal Company combined the various instructions then in use for gauging and marking boats for the collection of tolls into one regulation:

An Index shall be placed on each Boat, Barge or other Vessel with graduated dimensions consisting of marks and figures or letters shewing each Ton of lading on board cut on each side of the Stem and Stern and on the middle of each side of the boat, such marks to be not less than two inches in length, and such figures or letters not less than one inch in height, and to be painted white similar to the plan now in use in regard to Boats navigated on the Peak Forest Canal.

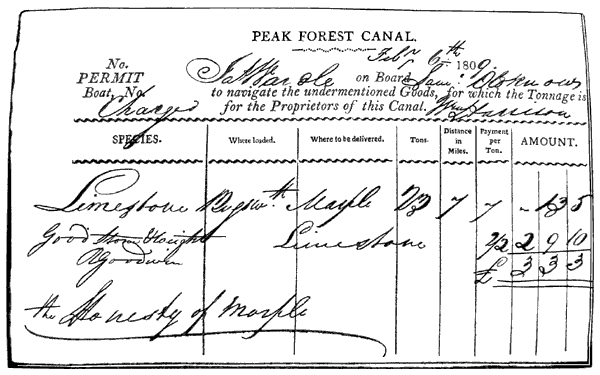

Example of a Peak Forest Canal Permit

The unnumbered Peak Forest Canal permit illustrated above was issued on Monday, 6 February 1809. It permitted John Wardle on board Samuel Oldknow's Boat No. — to carry 23 tons of limestone from Bugsworth Canal Basin to Marple, a distance of 7 miles. It was signed for by William Harrison at Bugsworth Basin. It is uncertain whether William Harrison was the wharfinger at this time or the toll clerk.

23 tons x 7d per ton for transport =    13s  5d
23 tons x 2s 2d per ton for stone  = £2  9s 10d
                            total  = £3  3s  3d

It was signed for at Marple Lime Works by the clerk, R Goodwin, who commented that it was 'Good Stone & Weight'.
